Beschrijving

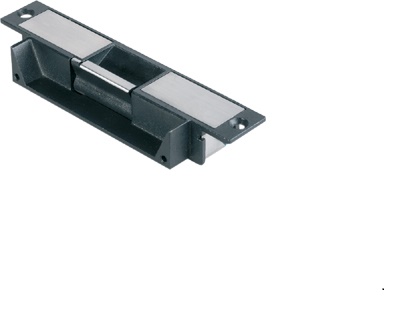

Locking Range Electric Strickes
- Mounting – Mortise Mount
- Holding Force- Hydraulic load test – 1400KGF/14000N/3100lbf
- Holding Force static test – 600kg
- Voltage – Dual voltage 12/24 VDC
- Current – 100mA/200mA
- Door Latch monitoring – yes
- Door position Monitoring- yes
- Anti-Tamper monitoring (patent) – yes
- Anti-Tamper monitoring (patent) – Simple iNterchange FL/FU with easy barbell for IGEST 10/15 series and provided screwdriver with easy access orifice for IGEST 20 series (no moving parts, no detached spring)
- Surface body material – Powder coated black
- Housing material – Stainless steel
- Keeper/Jaw material – stainless steel
- Front plate Material – stainless steel
- Additional long SS face plate included – no
- Fire reted – Yes – 4 hours
- Warranty – 2 years
- Body Size LxWxH – 137x25x23 mm
- Front plate size LxWxH – 204x38x3 mm (stainless steel)
